Move Shoot Move Star Tracker and Timelapse Pan/Tilt Mount

dial instruction.jpg
dial instruction.jpg
sold out

Move Shoot Move Star Tracker and Timelapse Pan/Tilt Mount

169.99

The motorised mount sits between your tripod legs and head to provide stop-start panning motion for timelapses and easy panoramas. Can also be mounted vertically using an arca swiss plate/manfrotto plate to produce tilt motion. Polar alignment using the included laser allows for star tracking so you can take much longer exposures at lower ISO settings without star trailing and obtain more detail in fainter objects like the Milky Way.

Add To Cart
Size (9.3 x 8 x 4.3) cm
Weight 0.46 kg
Max Load 3 kg
Charge micro-USB
Battery Life 3000 Shots
Battery Recharge 1 hour
Compatibility Canon, Nikon, Sony (With Hot-Shoe Model)

ATTENTION NOT SUPPORTED:
Fujifilm, Panasonic, Olympus, Phaseone, Leica
Warranty 1 year

The unit rotates your camera after every shot using a hot-shoe mounted sound detector which is triggered by the sound of the shutter closing. For this reason, the stop-start timelapse functionality is not compatible with Fujifilm, Panasonic, Olympus, Phaseone or Leica cameras (but all cameras work for star tracking). Your camera must also have a built in timelapse mode or an additional intervalometer is required.

The user can select 4 different rotation options: 0.05°, 0.075°, 0.1°and 0.125° per picture. There are also two different panorama modes to allow easy panoramas without having to manually move the camera: 200mm = 2° per photo and 35mm = 9° per photo.

Using the included laser and laser mount the device can also be polar aligned, allowing you to track the stars and take much longer exposures without star trailing (see video at bottom of the page). This is particularly useful when using lenses with longer focal lengths that are restricted to short shutter speeds to achieve no star trailing. It also allows you to unveil greater detail in fainter objects such as the Milky Way and will allow you to shoot at a lower ISO setting than normal. For tracking, the device is recommended for wide angle lenses up to about 135mm.

  Lagoon Nebula shot at 50mm (100% zoom) and 90 seconds without and with the star tracking feature.

Lagoon Nebula shot at 50mm (100% zoom) and 90 seconds without and with the star tracking feature.

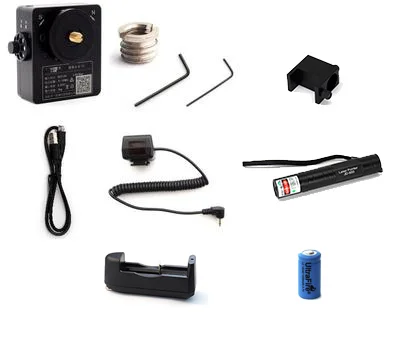

Package Contents:

  • Pan/Tilt Unit x1

  • Hot-shoe trigger  x1

  • Charging cable    x1

  • 1/4 to 3/8 Adapter x1

  • Hex Key          x2

  • Laser x1

  • Laser Mount x1

  • Rechargeable x1
    16340 battery

  • CR2 battery charger x1
    (Type A)

Please note: The laser is powered by an included rechargeable CR2 battery. The plug of the charger is A type for US, Japan, China. It can be charged in a 2-pin shaver plug or an addition converter must be purchased to use in the UK and EU.

The unit has a huge size and weight advantage over conventional portable equatorial mounts and is incredibly quick and easy to setup. Check out the videos below for more info about star tracking and timelapsing with the unit.

Shipping: Worldwide Flat Rate

User Manual: English V1.0

Note: In purchasing this item you are agreeing to abide by any laser laws in place in your country of residence and/or use and Alyn Wallace Photography may not be held responsible for any misuse or illegal action/s.
